High Efficiency Multirotor Drone Motor 15060 With 45'' Propeller And Low Vibration Controller

Ask Lasest Price
Brand Name :	Furious Motor
Model Number :	15060
Certification :	CE
Price :	$1722
Payment Terms :	L/C,D/A,D/P,T/T,Western Union
Supply Ability :	3000 pcs per month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

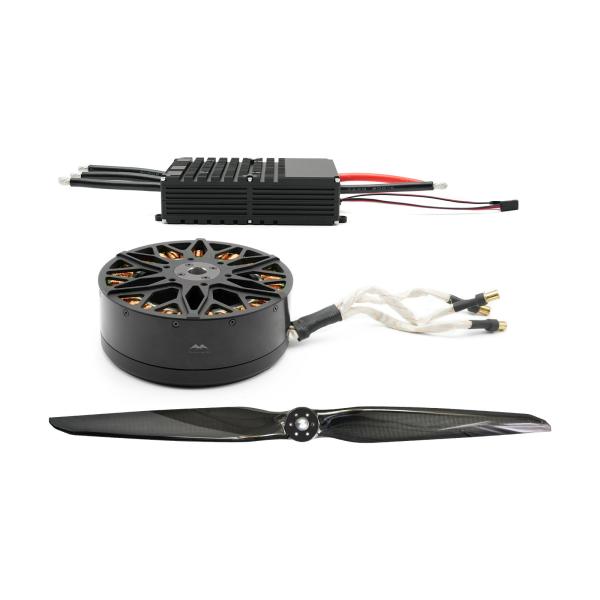

High Efficiency Multirotor Drone Motor 15060 With 45'' Propeller And Low Vibration Controller

Intoroduction

The Furious Motor 15060 brushless motor is expertly engineered to excel across a wide range of aerial missions, such as multirotor drones, delivery systems, camera-equipped drones, quadcopters, and heavy-lift platforms.

Featuring an impressive maximum thrust of up to 56kg within a remarkably lightweight 2.5kg frame, this motor is built for outstanding performance. Seamlessly paired with a 45-inch propeller and a 24S 200A ESC, the 15060 motor delivers exceptional efficiency and dependability, ensuring fluid operation across diverse and demanding conditions.

Tech Specs

System

Max. Thrsut	58 kg / rotor
Takeoff Weight	20 kg - 29 kg / rotor
Suggested ESC	24 S 200 A
Suggested Propeller	45 inch 2-blade propeller
Suggested Battery	12 S - 24 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	3.44 kg
Application	Multi-rotor drone, paramotor and paraglider

Motor

Model	150-60
KV	72
Max. Thrsut	58 kg
Max. Torque	31 N·m
Max. RPM	3588
Dimension	150 mm * 60 mm
Weight	2.5 kg

ESC

Model	24 S 200 A
Suggested Battery	12 S ~ 24 S (Li-Po)
PMW Signal	3.3 V / 5 V
Pulse Width	900 us ~ 2000 us
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	DC 50 V ~ 100 V
Max. Current	240 A
Weight	595 g
Dimension	140.5 mm * 66.6 mm * 34.4 mm

Propeller

Model	45 inch 2-blade
Diameter	45 inch
Material	Carbon fiber
Weight	350 g

Details

High Efficiency Multirotor Drone Motor 15060 With 45'' Propeller And Low Vibration Controller

High-Efficiency Multirotor Drone Motor 15060 With 45-Inch Propeller And Low-Vibration Controller
